SMARTY7R (Διαθέσιμο Κατόπιν Παραγγελίας)
Electromechanical actuator BRUSHLESS, low voltage, super intensive use. Reversible, for swing gates with gate leaf up to 7m.
BrushlessIntensive UseReversibleIndustrialCommercial
Power line supply:
230V AC - 50Hz
Motor power supply:
36V
Power rating:
200W
Frequency of use:
Intensive use
Thrust:
600 - 6500N
Operating temperature:
-20 C° +55 C°
Protection level:
IP44
Reductor Type:
Reversible
Manoeuvre speed:
1,6 cm/s
Opening time:
35-50 s
Stroke:
520 mm
Limit switch:
Mechanical stopper in opening and closing
Recommended digital controllers:
230V: EDGE1/BOX - 115V: EDGE1/BOX/115
Encoder:
Digital native encoder SENSORLESS 48 PPR + EMA
Operating cycles per day (opening/closing - 24 hours no stop):
1000
Maximum dimension product in mm (L x W x H):
1312 x 116 x 165
Product weight packed (Kg):
18,5

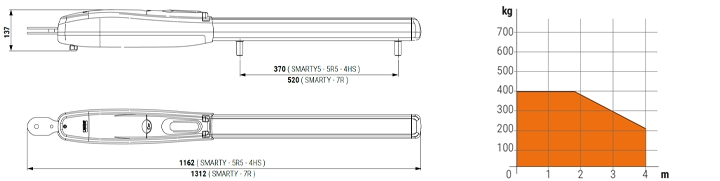

Dimensions
Predisposition for standard installation
