Intended use

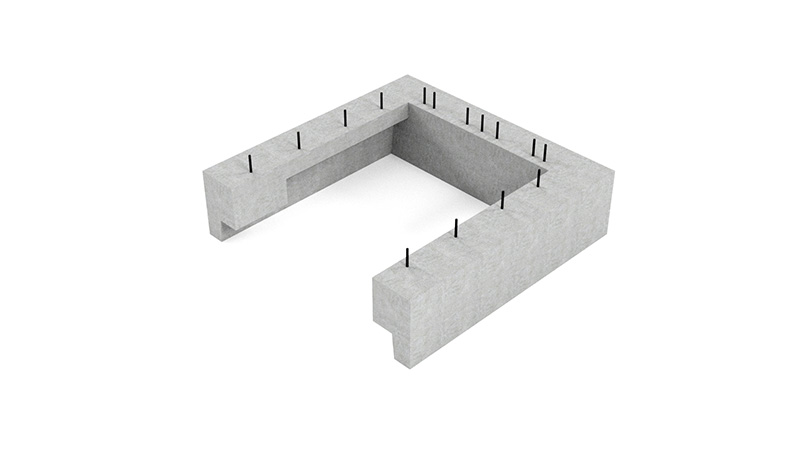

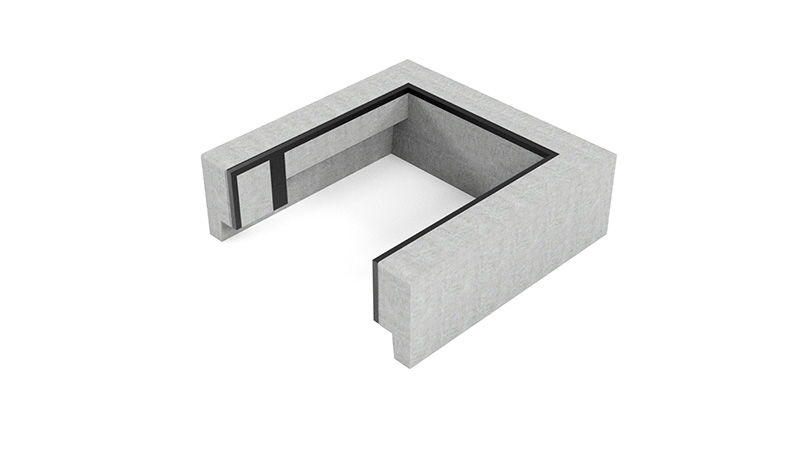

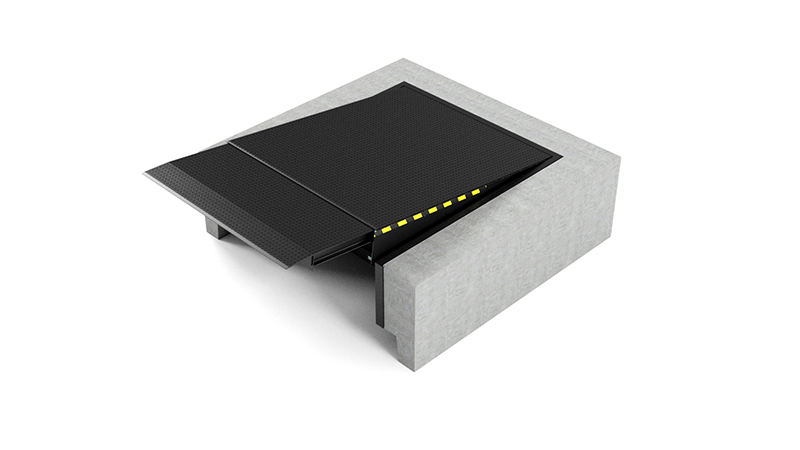

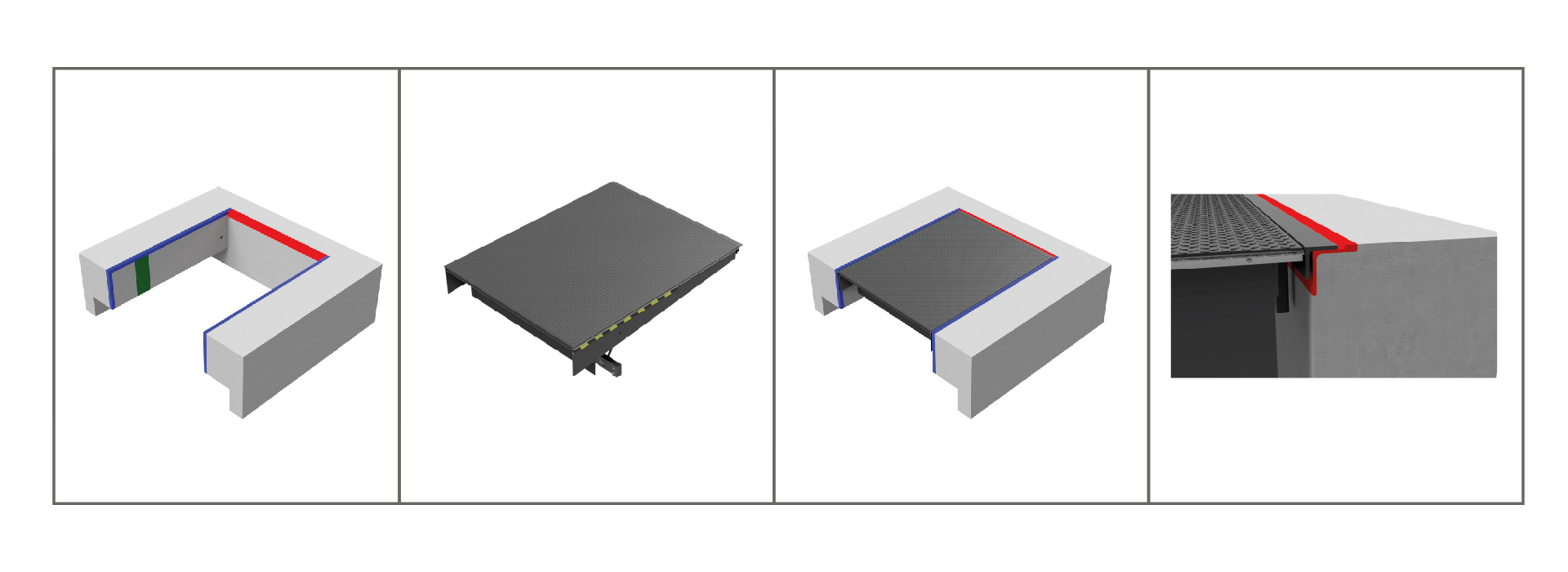

The telescopic lip dock leveller is designed for picking up pallets with a forklift to load or unload trucks. Its characteristic feature is a retractable lip guided along bearing rollers. The leveller has the CE mark. Its platform is made of 8/10 mm thick ribbed sheet metal. It is integrated with the service support and connected to the back of the leveller frame with hinges. Fully secure use is ensured by the anti-slip surface, foot protection along the entire length of the platform and the full lifting range of the leveller. Different methods of placing bridges in the foundation are possible.
• Designed for pallet handling
• Robust steel structure
• Quick and safe loading
• Anti-slip layer for leveller contact elements
• Chamfered lip
• Four-button control
• Possibility of coupling the leveller to the door
• Easy installation
EQUIPMENT
- electrical installation
- hydraulic installation
- control box
- straight swing lip
- platform painted RAL 9005
- CE declaration of conformity

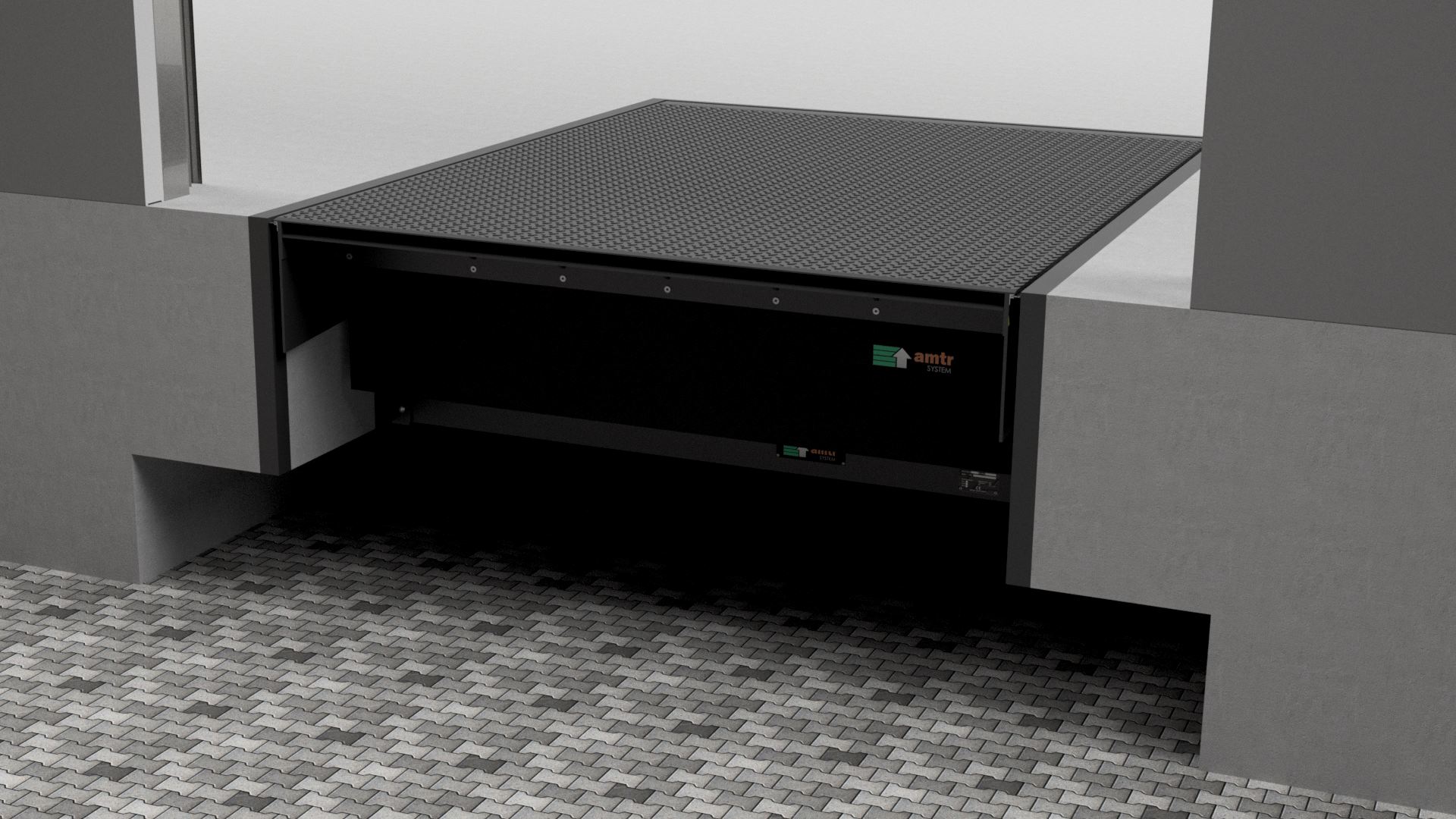

Technical and operational parameters of the AMTRV-PRO dock leveller
|
Application Nominal
|
Loading systems
|
|
Lengths Nominal
|
2000, 2500, 3000, 3500, 4000 mm
|
|
Widths Structure
|
2000, 2250 mm
|
|
Construction height
|
710 mm
|
|
Nominal lengths of the telescopic lip
|
500 mm, (1000 mm optional)
|
|
Sheet metal thickness
|
8-10 mm (depending on the load capacity)
|
|
Nominal load capacity
|
6-12 tonnes (60-120 kN)
|
|
Working ranges above the level
|
0 to 430 mm
|
|
Standard colours
|
RAL 9005 RAL 7042 RAL 5010 (two-component resin-based paint)
|
