INTENDED USE

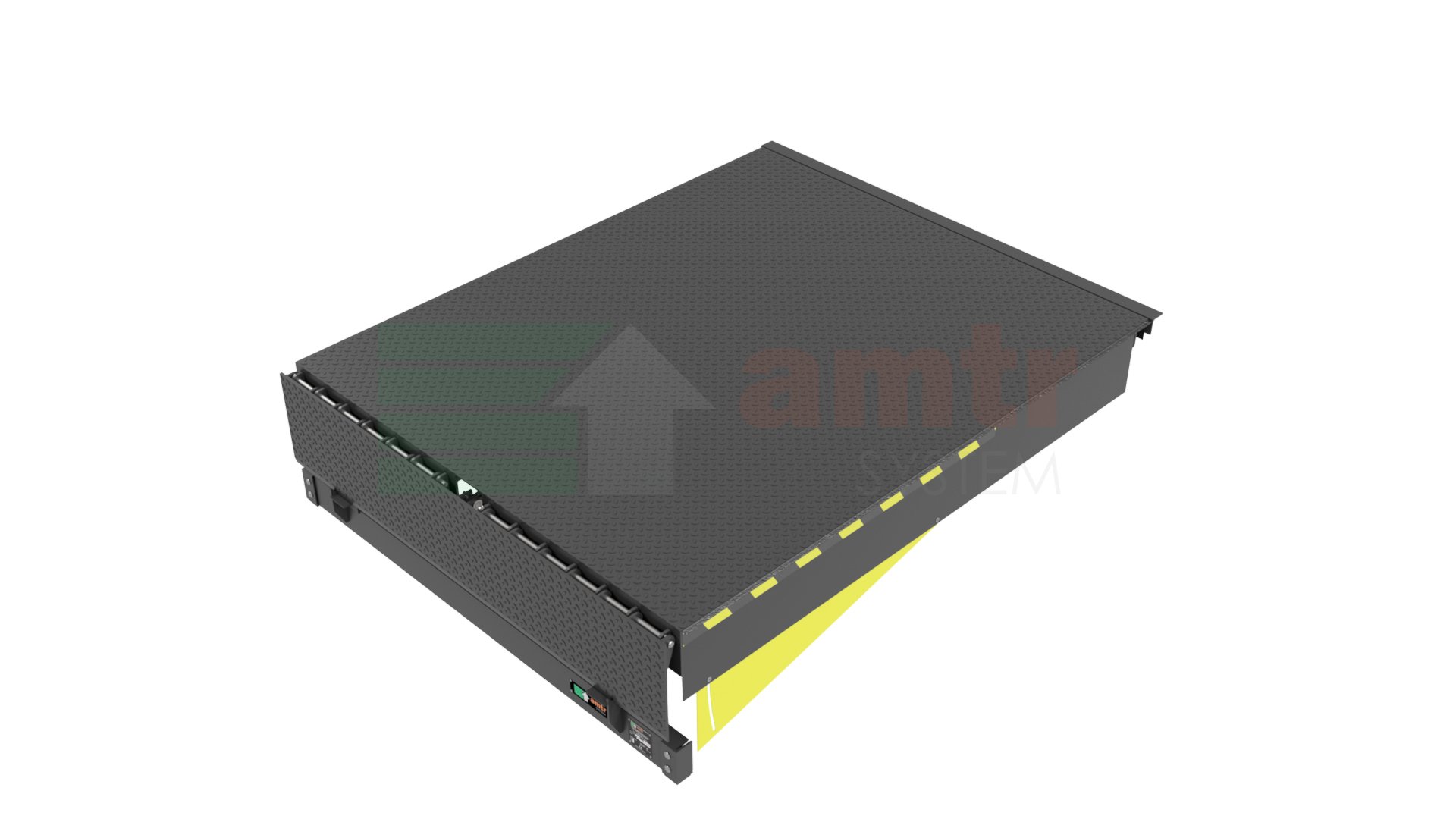

The swing lip dock leveller is designed for pallet handling by forklift trucks for TIR trucks. The dock leveller is equipped with a swing lip to ensure fast and safe loading. The dock leveller is CE marked. It is integrated into the service support and connected at the rear of the dock leveller by means of hinges. Full safety of use is ensured by the anti-slip surface, foot protection along the entire length of the platform and full range of dock leveller lifting.
INSTALLATION METHOD
standard to a pre-prepared socket, hardware according to the manufacturer's guidelines.
EQUIPMENT
- electrical installation
- hydraulic system
- control box
- swing lip 400 mm in the straight version
- platform varnished RAL 9005
- CE declaration of conformity
- The access platform is made of 6/8 mm thick chequered plate(60 kN)
Technical and operational parameters of the AMTRK-PRO dock leveller
| Breakdown | AMTRK-PRO-RS 25 | AMTRK-PRO-RS 30 | AMTRK-PRO-RS 35 |
| Platform rated lengths ( NL ) | 2410 mm | 2910 mm | 3410 mm |
| Dock leveller rated width ( NB ) | 2000 mm | 2000 mm | 2000 mm |
| Swing lip rated length ( Vmax ) | 400 mm | 400 mm | 400 mm |
| Rated load-bearing capacity | 60 kN ( 6 T ) | 60 kN ( 6 T ) | 60 kN ( 6 T ) |
| Effective operating range upwards ( O ) | 290 mm | 350 mm | 410 mm |
| Effective operating range downwards ( U ) | 350 mm | 340 mm | 335 mm |
| Dock leveller structural height ( H ) | 610 mm | 610 mm |
