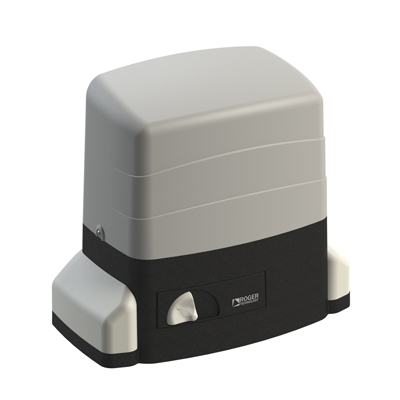

Electromechanical motor 230V AC irreversible ideal for sliding gates up to 1200Kg with built-in control unit H70, optical encoder and magnetic limit switch.
| Max gate weight: | 1200 kg |
| Power line supply: | 230V AC - 50Hz |
| Motor power supply: | 230V AC |
| Power rating: | 420W |
| Frequency of use: | 50% |
| Thrust: | 800N |
| Operating temperature: | -20+55°C |
| Protection level: | IP44 |
| Reductor Type: | Irreversible |
| Manoeuvre speed: | 9.5 m/min (0.16 m/s) |
| Motor thermal protection: | 150°C |
| Incorporated condenser: | 18 µF |
| Limit switch: | Magnetic |
| Onboard control unit: | H70/104AC |
| Encoder: | Optical |
| Type exit gear: | Z17/mod 4 |
| Maximum dimension product in mm (L x W x H): | 325 x 162 x 294 |
| Product weight packed (Kg): | 16,7 |

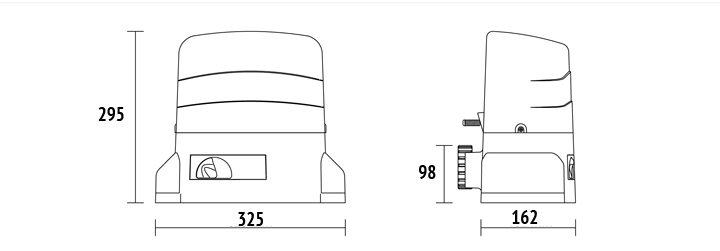

Dimensions

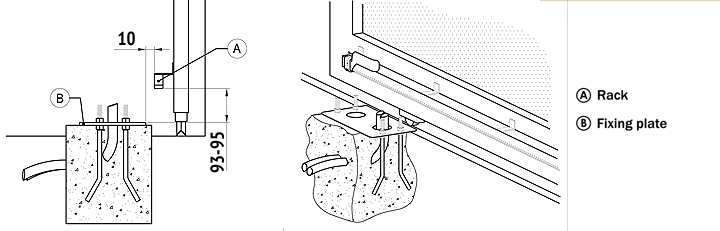

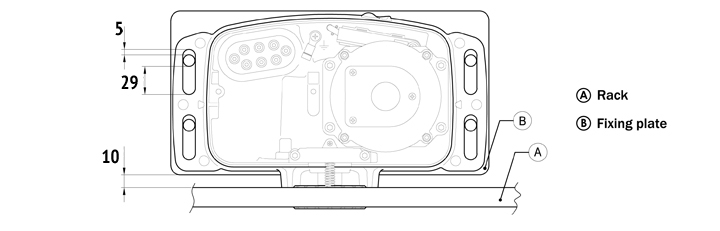

Predisposition for standard installation
Predisposition for standard installation
