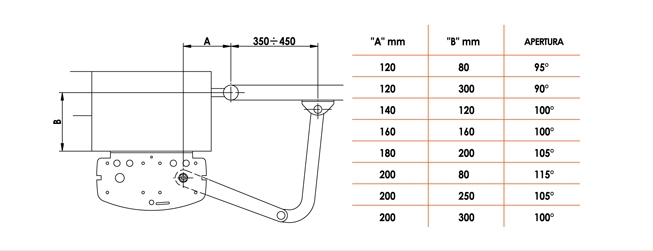

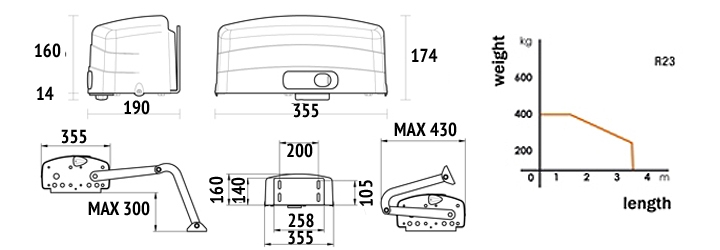

Product dimensions & preparing for installation
R23/372
Electromechanical articulated motor 230V AC irreversible ideal for swing gates with leaf up to 3.5 meters of length. With mechanical limit switch. With short articulated arms.
| Reliable: Designed to be the five star solution to be installed on gates with wide columns due to its design and offers excellent noise reduction and a safe constant movement. Easy: to install due to simple electrical connections and mounting brackets without any welding. Management: Personalised, protected release keys available with the option of opening externally using a strap. Control unit: external and perfectly integrated with the control unit with two H70/200AC motors. |
| Number items per pallet: | 48 |
| Power: | 230 V AC 50Hz |
| Power rating: | 200 W |
| Max thrust: | 400 N |
| Frequency of use: | 50% |
| Motor thermal protection: | 150°C |
| Operating temperature: | -20+55°C |
| Protection level: | IP43 |
| Opening time at 90°: | 14 s |
| Maximum dimension product in mm: | L430 x W190 x H174 |
| Encoder: | - |
| Limit switch: | Microswitch in opening and closing |
| Always included in the individual product package of kit: | Plate for fixing to post (KT208),gate pull bracket (KT218),arms short for articulated motor (LT302) |
