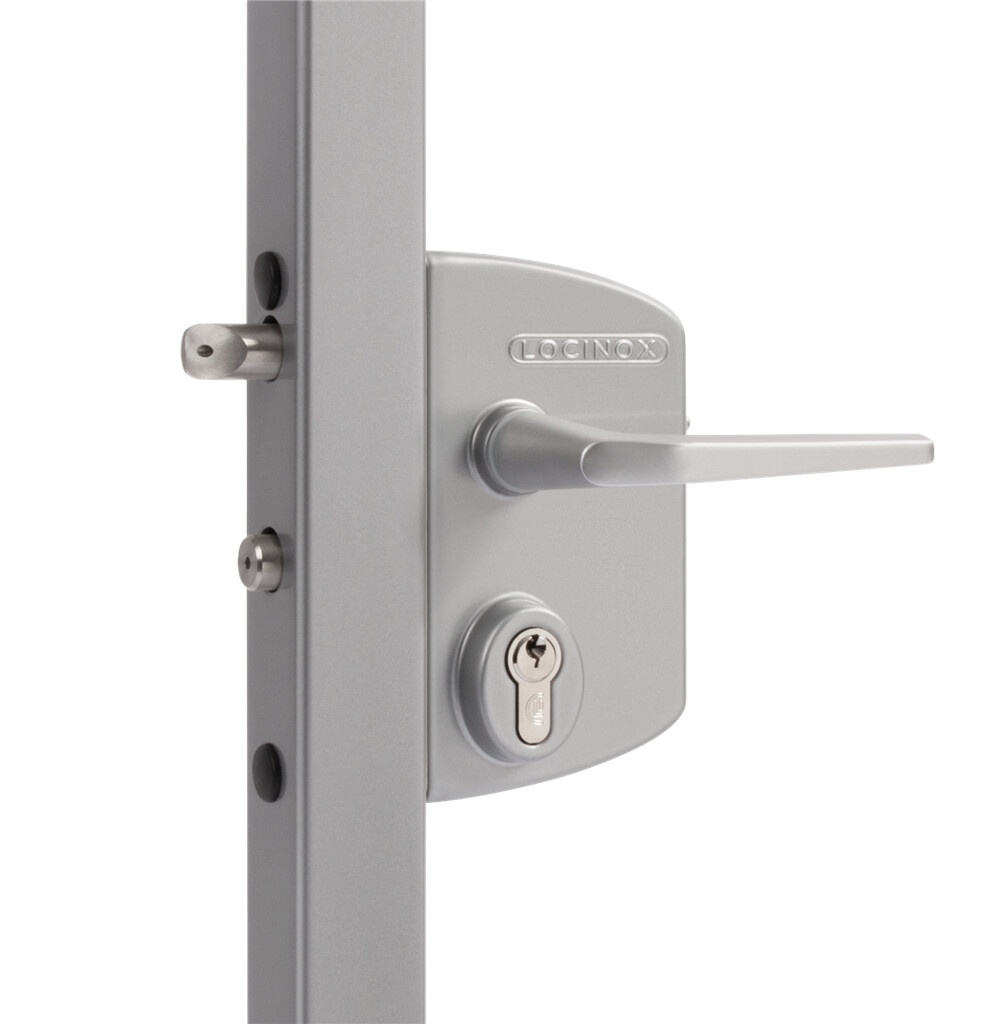

High quality gate lock with aluminium housing and stainless steel mechanism. We advise this lock as a standard for all your industrial gates. The 20 mm continuous adjustability of the bolts allows a perfect latching / locking of the mechanism. A solid stainless steel deadbolt with a 23 mm throw guarantees a secure locking. Standard supplied with anodized aluminium handle pair. For a fast and highly precise installation, we recommend using the Drill-Fix drilling jig.
Διαθέσιμα Χρώματα:
InstallationArchitect-Engineering
Σχετικά Προϊόντα:
MODULEC-SA
ISO 9227 KTL / E-coated lock box withstands 1000 hours of salt spray test

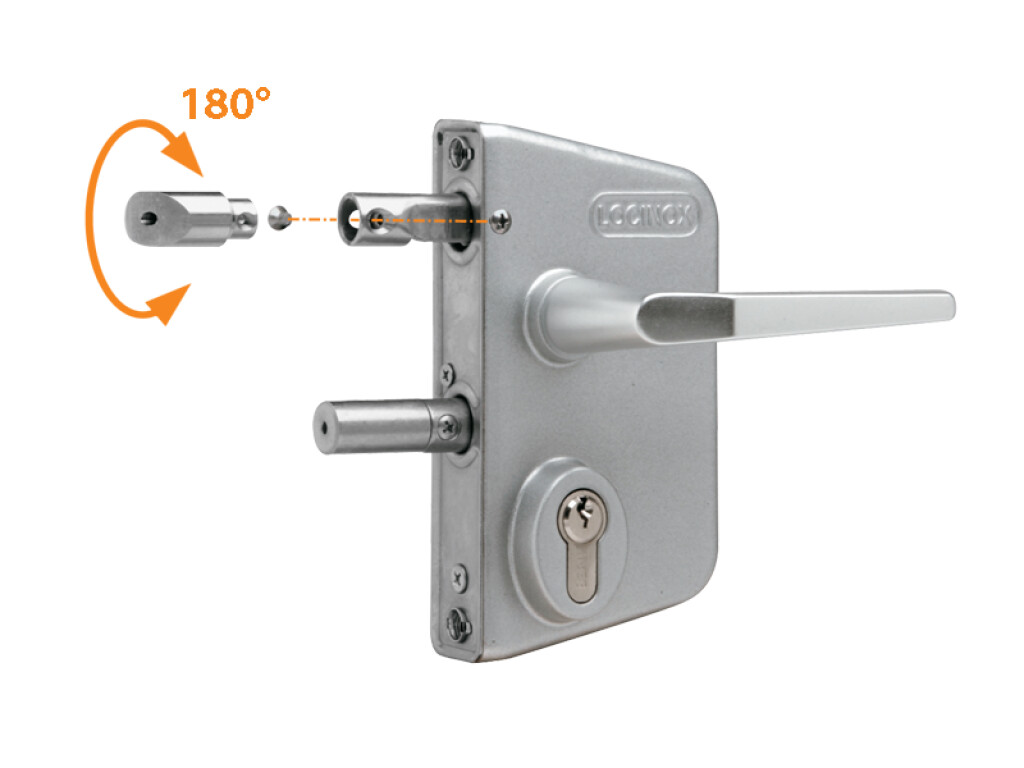

Easy left or right changing of the self-latching daybolt
23 mm throw of the dead bolt, in 1 turn of the key
Key-operated self-latching bolt
4-hole fixing with two hexagon socket head screws
60 mm center distance of the bolts
Continuous adjustment of the daybolt up to 20 mm without dismounting the lock box
Stainless steel mechanism
Πληροφορίες
Τεχνικά Χαρακτηριστικά
Διαστάσεις & Σχέδια
Video
SURFACE MOUNTED GATE LOCK
High quality gate lock with aluminium housing and stainless steel mechanism. We advise this lock as a standard for all your industrial gates. The 20 mm continuous adjustability of the bolts allows a perfect latching / locking of the mechanism. A solid stainless steel deadbolt with a 23 mm throw guarantees a secure locking. Standard supplied with anodized aluminium handle pair. For a fast and highly precise installation, we recommend using the Drill-Fix drilling jig.
Διαθέσιμα Χρώματα:
InstallationArchitect-Engineering
Σχετικά Προϊόντα:
MODULEC-SA
ISO 9227 KTL / E-coated lock box withstands 1000 hours of salt spray test
Easy left or right changing of the self-latching daybolt
23 mm throw of the dead bolt, in 1 turn of the key
Key-operated self-latching bolt
4-hole fixing with two hexagon socket head screws
60 mm center distance of the bolts
Continuous adjustment of the daybolt up to 20 mm without dismounting the lock box
Stainless steel mechanism
