Technical Specifications

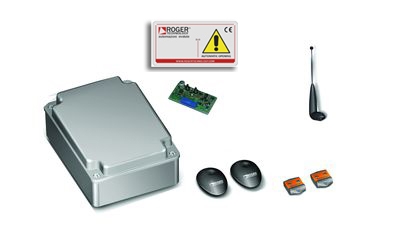

KIT H70/21 Electronic kit with control unit H70/200AC for two motors, with wall antenna and without flashing light.
| Protection level: | IP54 |
| Standard power: | 230V AC +/- 10% 50Hz |
| Operating temperature: | -10+55°C |
| Max flashing light charge: | 40W (12-230V AC/DC) |
| N. motors activated: | 2 asynchronous monophase |
| Max power per motor: | 600W 230V AC |
| Max courtesy light charge: | 100W (12-230V AC/DC) |
| Max power gate open light: | 2W (24V AC) |
| Max voltage accessories output: | 350mA 24V AC (500mA 24Vcc) |
