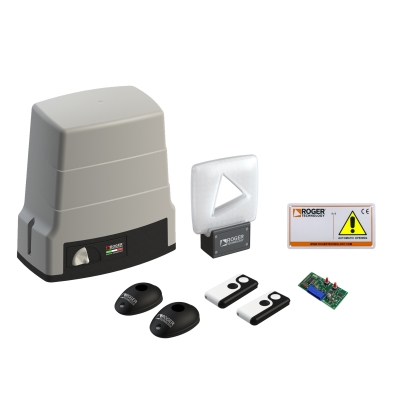

KIT H30/646

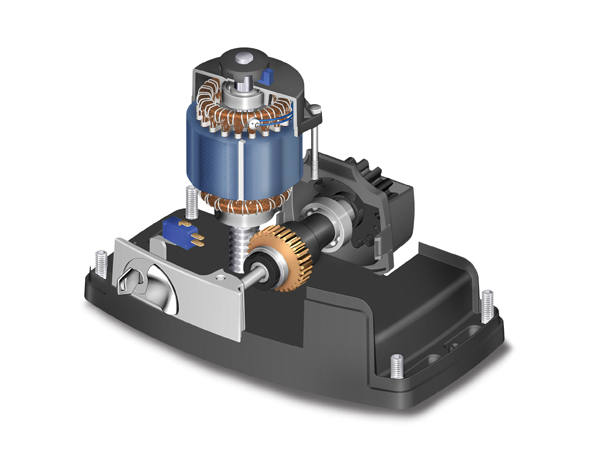

KIT Electromechanical motor 230V AC irreversible ideal for sliding gates up to 600 kg with built-in control unit H70, optical encoder and magnetic limit switch.
Optical EncoderMagnetic switchResidentialCommercial
Max gate weight:
600 kg
Power line supply:
230V AC - 50Hz
Motor power supply:
230V AC
Power rating:
240W
Frequency of use:
50%
Thrust:
300N
Operating temperature:
-20+55°C
Protection level:
IP44
Reductor Type:
Irreversible
Manoeuvre speed:
9.5 m/min (0.16 m/s)
Motor thermal protection:
150°C
Incorporated condenser:
12,5 µF
Limit switch:
Magnetic
Onboard control unit:
H70/104AC
Encoder:
Optical
Type exit gear:
Z15/mod 4

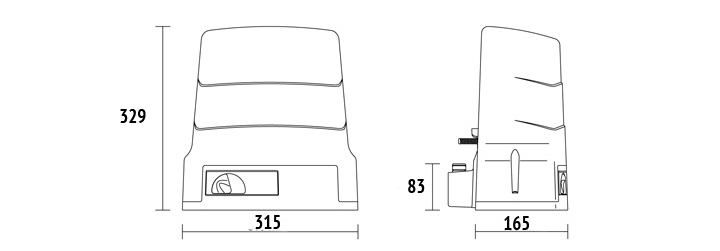

Maximum dimension product in mm (L x W x H):
315 x 165,8 x 329
Product weight packed (Kg):
12,3
