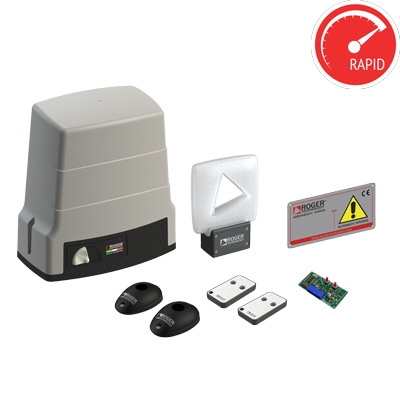

KIT BH30/606/HS
KIT Electromechanical HIGH SPEED BRUSHLESS motor, low voltage, super intensive use, with native encoder onboard, irreversible ideal for sliding gates up to 600kg with built-in digital controller B70 series, magnetic limit switch.
| Max gate weight: | 600 kg |
| Power line supply: | 230V AC - 50Hz |
| Motor power supply: | 24V |
| Power rating: | 130W |
| Frequency of use: | Intensive use |
| Thrust: | 50 - 500N |
| Operating temperature: | -20+55°C |
| Protection level: | IP44 |
| Reductor Type: | Irreversible |
| Manoeuvre speed: | 26 m/min (0.4 m/s) |
| Limit switch: | Magnetic |
| Onboard control unit: | B70/1DC |
| Encoder: | Digital native encoder + magnetic digital SENSORED, 4096 PPR |
| Batteries recovery: | Optional 2 internal battery 12V 1,2AH - Optional 2 external battery 12V 4,5AH |
| Type exit gear: | Z15/mod 4 |
| Operating cycles per day (opening/closing - 24 hours no stop): | 800 |
| Maximum dimension product in mm (L x W x H): | 315 x 165,8 x 329 |
| Product weight packed (Kg): | 13 |
Dimensions
Predisposition for standard installation
Predisposition for standard installation
