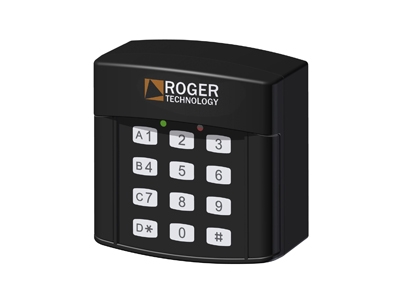

H85/TTD/I
Keypad selector with 12 digit numbers "TOUCH", 4 channel, built-in.
Keypad selector with 12 digit numbers "TOUCH", 4 channel, built-in.
| Power: | (decoder) 24V ac-dc / 12V dc |
| Operating temperature: | -10°C +55°C |
| Protection level: | IP54 |
| Absorption: | 25mA |
| Number of users codes storable: | 500 |
| Maximum number of digits per user code: | 6 |
| Minimum number of digits per user code: | 3 |
| Maximum number of wired keyboard: | 4 |
| Number of outputs available: | 4 of command / 1 of alarm |
| Type of enable outputs: | Impulse (activation time 350s) |
| Type of output: | Relay, pure contact |
| Maximum power commutable (except light bulbs): | 60VA/24W - 1A |
| Delay on relay activation: | 100ms |
| Maximum length cable from interface to keyboard: | 100m (two-wire section cable 0.5mm2) |
| Backlight keyboard: | 6 white LEDs, two levels of intensity |
| Keypad Power Supply (with access control): | 24 Vac-dc; 12 Vdc |
| Communication protocols (with access control): | Wiegand 26 bit / 37bit / 50bit; ISO2 (“magnetic stripe”) |
| Type of output (with access control): | Digital |
| Output voltage levels (with access control): | 5Vdc at rest (passive, via resistance of 2k7 internal pull-up);0Vdc (active, transistor forced) |
| Maximum number of wired keyboard (with access control): | 5 (with the same operating mode) |
| Type: | Built in |
