Technical Specifications

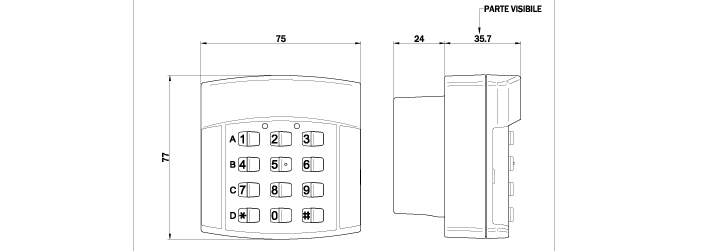

Dimensions

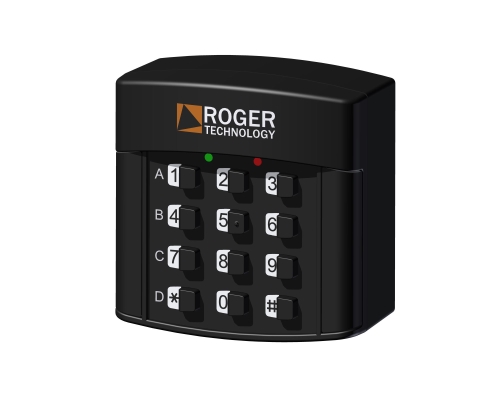

H85/TDS/I
Keypad selector with 12 digit numbers, 4 channel, built-in.
Keypad selector with 12 digit numbers, 4 channel, built-in.
| Power: | (decoder) 24V ac-dc / 12V dc |
| Operating temperature: | -10°C +55°C |
| Protection level: | IP54 |
| Absorption: | 20mA |
| Number of users codes storable: | 500 |
| Maximum number of digits per user code: | 6 |
| Minimum number of digits per user code: | 3 |
| Maximum number of wired keyboard: | 4 |
| Number of outputs available: | 4 of command / 1 of alarm |
| Type of enable outputs: | Deadman (continue until you release the key) |
| Type of output: | Relay, pure contact |
| Maximum power commutable (except light bulbs): | 60VA/24W - 1A |
| Delay on relay activation: | 100ms |
| Maximum length cable from interface to keyboard: | 100m (two-wire section cable 0.5mm2) |
| Backlight keyboard: | 6 white LEDs, two levels of intensity |
| Type: | Built in |
