Technical Specifications

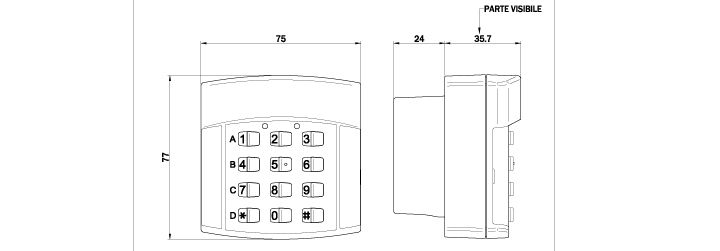

Dimensions
H85/TDR/I

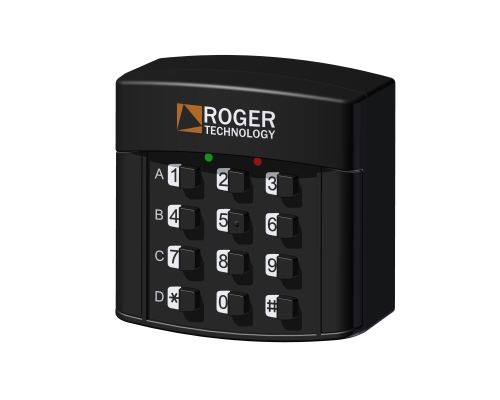

Radio Keypad selector with 12 digit numbers, 4 channel, built-in, for rolling code and fix code transmission.
| Operating temperature: | -10°C +55°C |
| Protection level: | IP54 |
| Maximum dimension product in mm: | 75x77x60 |
| Codification: | Fix code - Rolling Code |
| Modulation: | AM/ASK |
| Carried frequency: | 433.92 Mhz |
| Battery: | 2 x CR2032 |
| Number of combinations: | 65536 (fix code) - 4.294.967.296 (rolling code) |
| Number of bits of the identification code: | 16 (fix code) - 32 (rolling code) |
| Number of bits transmitted: | 28 (fix code) - 144 (rolling code) |
| Battery life: | Minimum 2 years with 10 activations / day |
| Number of users codes storable: | 450 |
| Maximum number of digits per user code: | 6 |
| Minimum number of digits per user code: | 3 |
| Average consuption when keypad active: | 12 mA |

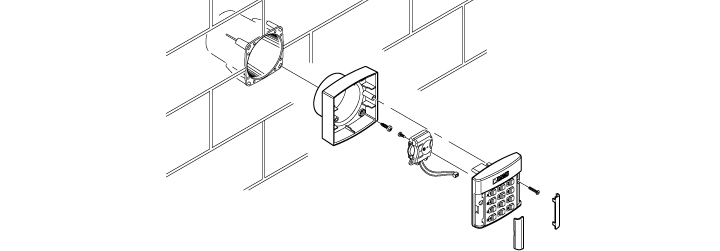

| Installation Type: | Built in |
