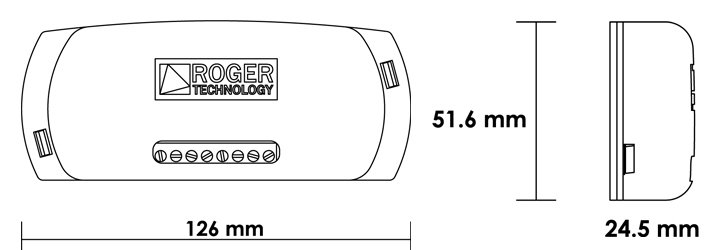

Dimensions

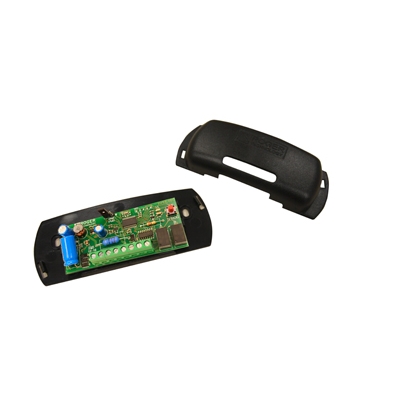

H85/DEC2/BOX
2 channels decoder card for H85/TDS - H85/TTD with plastic box.
| Power line supply: | 24V AC-DC; 12V DC: H85/DEC |
| Absorption: | 40mA keypad + decoder (50mA with relay active) |
| Operating temperature: | -20+55°C |
| Protection level: | IP54 |
| Number of users codes storable: | 500 |
| Maximum number of digits per user code: | 6 |
| Minimum number of digits per user code: | 3 |
| Maximum number of wired keyboard: | 2 |
| Number of outputs available: | 2 of command |
| Type of enable outputs: | Deadman (continue until you release the key) |
| Type of output: | Relay, pure contact |
| Maximum power commutable (except light bulbs): | 60VA/24W |
| Delay on relay activation: | 100ms |
| Maximum length cable from interface to keyboard: | 100m (two-wire section cable 0.5mm2) |
| Maximum dimension product in mm (L x W x H): | 126 x 52 x 25 |
| Product weight packed (Kg): | 0,5 |
