Technical Specifications

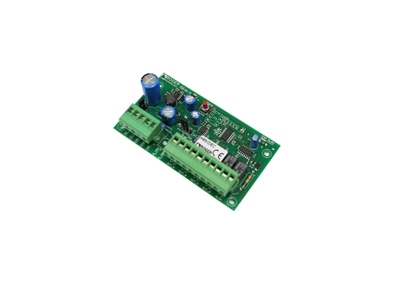

H85/DEC
4 channels decoder card for H85/TDS/E - H85/TDS/I.
4 channels decoder card for H85/TDS/E - H85/TDS/I.
| Power: | 24 Vac-dc; 12 Vdc |
| Absorption: | 40mA keypad + decoder (50mA with relay active) |
| Number of users codes storable: | 500 |
| Maximum number of digits per user code: | 6 |
| Minimum number of digits per user code: | 3 |
| Maximum number of wired keyboard: | 4 |
| Number of outputs available: | 4 of command / 1 of alarm |
| Type of enable outputs: | Deadman (continue until you release the key) |
| Type of output: | Relay, pure contact |
| Maximum power commutable (except light bulbs): | 60VA/24W |
| Delay on relay activation: | 100ms |
| Maximum length cable from interface to keyboard: | 100m (two-wire section cable 0.5mm2) |
