Technical Specifications

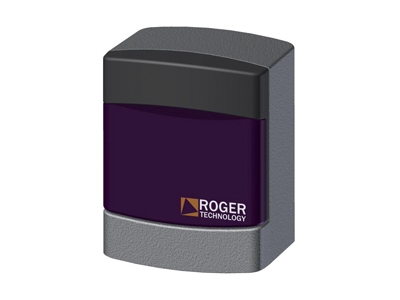

G90/F4ES/TRIX/TX External transmitter photocell synchronized 24V AC/DC up to 4 pair, compatible only with photocell column TRIX50/G90 - TRIX100/G90.
| The photocells G90 which can be synchronised up to 4 pairs are presence detectors with infra-red technology powered by 24V AC/DC, which allow obstacles to be detected which are present on the optical axis between the transmitter (TX) and receiver (RX), can be used for automatic inputs. The new Roger Series G90 photocells are designed in such a way as to increase the safety of the system and simplify their installation with several advantages. Innovative design ideal for any architectural form. Designed for installation in very narrow spaces. Special covers to protect the screws with an scratch-proof support release system. Ability to synchronise two photocell pairs. Detector using LEDs of the quality of the signal to optimise the centring of the photocells. Ability to adjust the range distances on two levels. |
| Protection level: | IP55 |
| Standard power: | 24V ac 50Hz - 24V dc |
| Absorption: | TX 18mA - RX 27mA |
| Maximum distance in open field: | 10-15m |
| Relay contacts max current: | 0,5A RX |
| Relay contacts max voltage: | 30V |
| Operating temperature: | -2o°C + 55°C |
| Installation type: | External with photocell column TRIX50/G90-TRIX100/G90 |
| Maximum number of photocells synchronized: | 4 |
| Orientation angle: | - |
