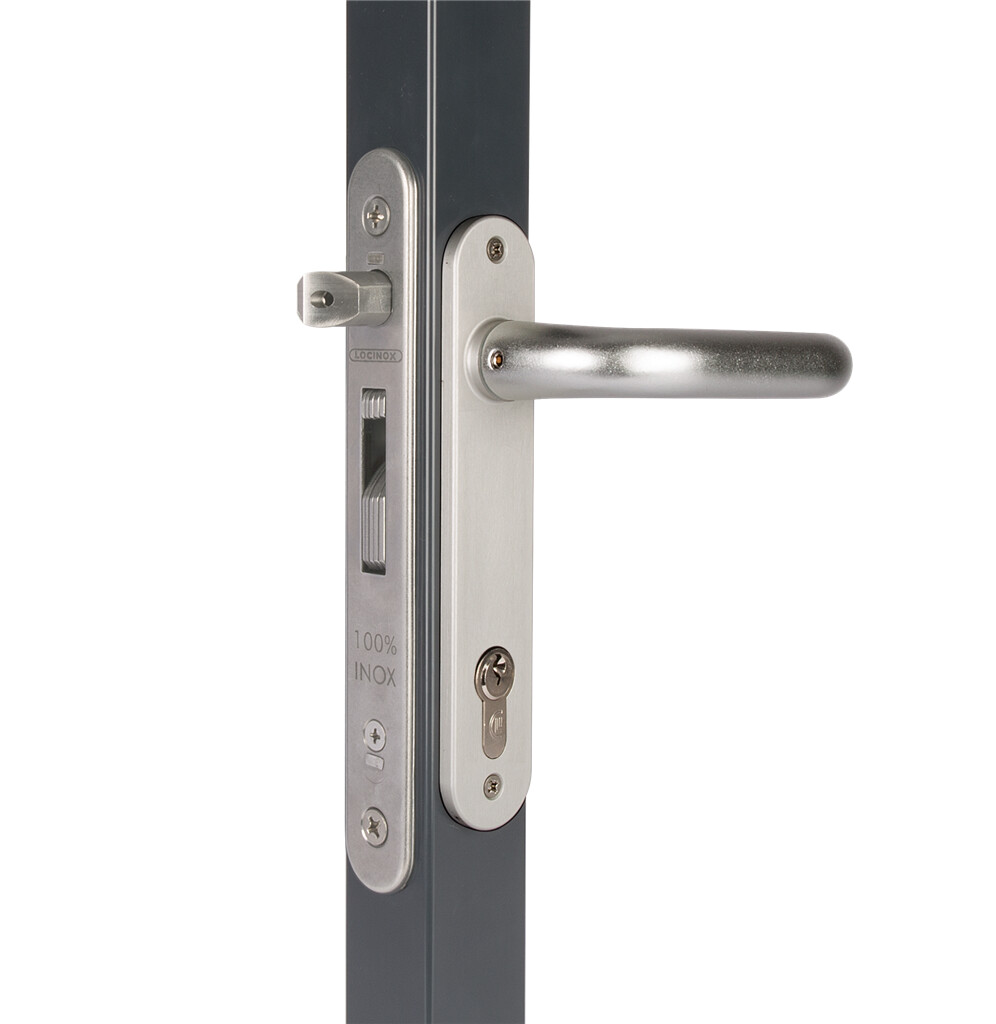

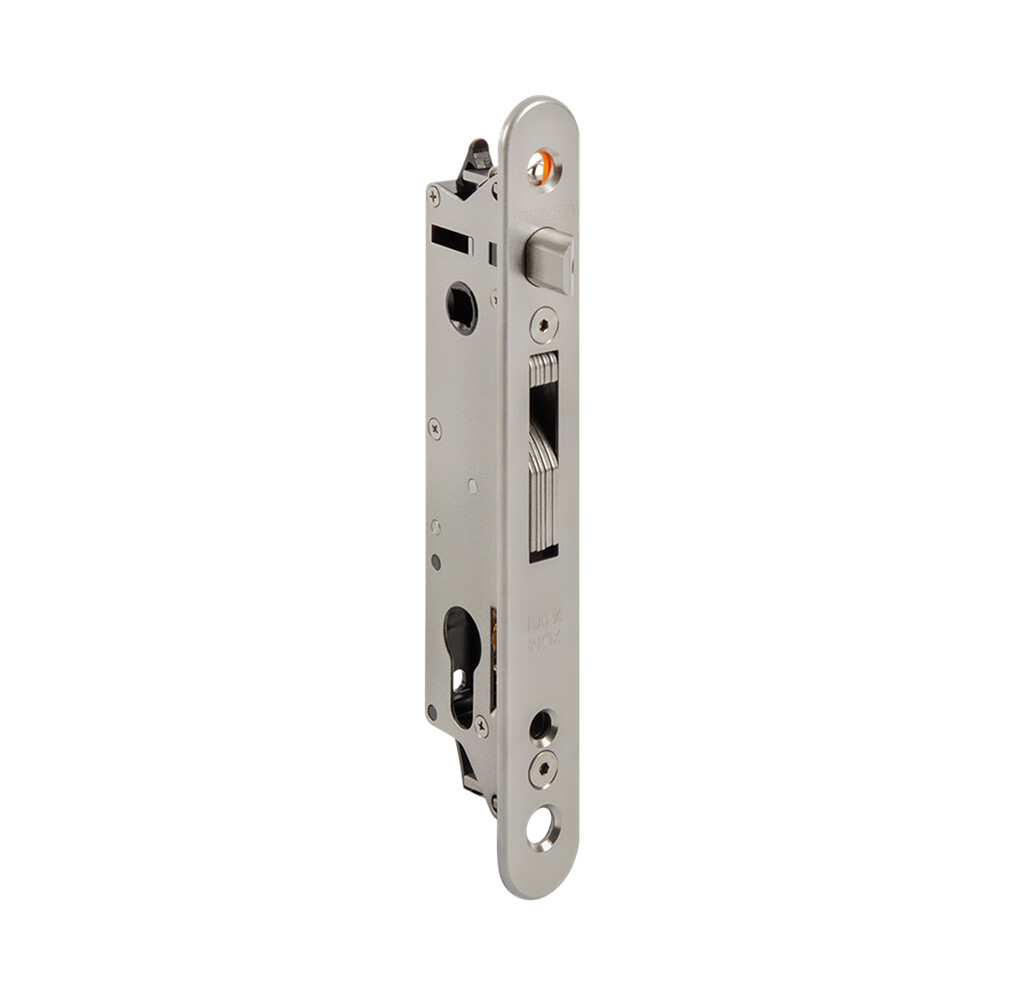

INSERT LOCK WITH 20 MM BACKSET FOR PROFILES OF 40 MM OR MORE
Prime insert lock with 100% stainless steel mechanism. The stainless steel adjustable self-latching bolt and hook combined with the right keep guarantee a strong and solid closed gate where the gate wings can not be pulled apart or forced open. The lock can be installed on metal, aluminium and PVC gates. Thanks to the patented "Click-It" system, installing the lock can be done in a matter of seconds.
Manual
Σχετικά Προϊόντα:
SFKI
Lock mechanism with cover plate against dirt penetration

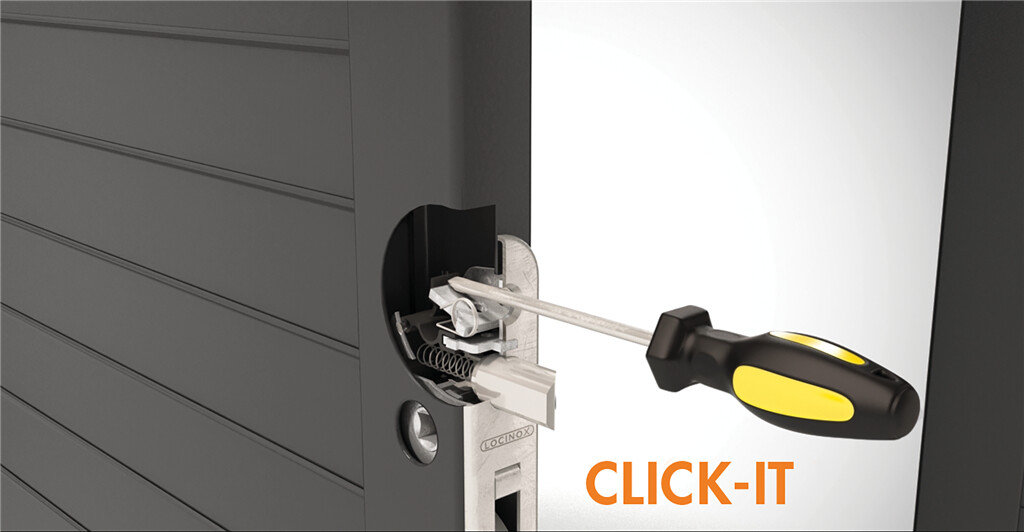

Patented "Click-It" system makes thread tapping unnecessary
Continuous adjustment of the daybolt up to 10 mm without dismounting the lock box
Easy left or right changing of the self-latching daybolt
Throw of the hook: 21 mm
Center-distance cylinder <=> handles = 92 mm
Optional: cover shield for handle & cylinder holes in aluminium, polyamide or stainless steel
Handles to be ordered separately
Compatible with all Europrofile cylinders
