Τα συστήματα πορτών EFAFLEX Γερμανίας είναι σχεδιασμένα, εξελιγμένα και κατασκευασμένα σύμφωνα με την τεχνολογία αιχμής και εναρμονισμένα με τις υψηλότερες Διεθνείς και Ευρωπαϊκές Προδιαγραφές. Η Γερμανική κατασκευή και ποιότητα εξασφαλίζει την υψηλότερη δυνατή αξιοπιστία του μηχανισμού και μακροχρόνια απόσκοπτη λειτουργία.
S SERIES
HIGH-SPEED SPIRAL DOORS
Όλες οι πόρτες της σειράς βασίζονται στην τεχνολογία spiral. Ανοίγει μία νέα διάσταση στην κατασκευή αυτόματων πορτών, με μέση ταχύτητα μεγαλύτερη από 3,6 m/sec αποτελούν τις ταχύτερες πόρτες στον κόσμο.
EFA-SST® ISO-60 at a glance
- Max. heat insulation with EFA-THERM® laths
- k-value up to 0.8 W/m2 K
- 60 mm thick door leaf
- Opening up to 2.5 m/s
- Closing up to 1.0 m/s
- Up to 250,000 operating cycles p.a.
- Standard sizes up to w=6,000mm x h=6,000mm
For thermoregulated zones
Closing door for thermoregulated zones

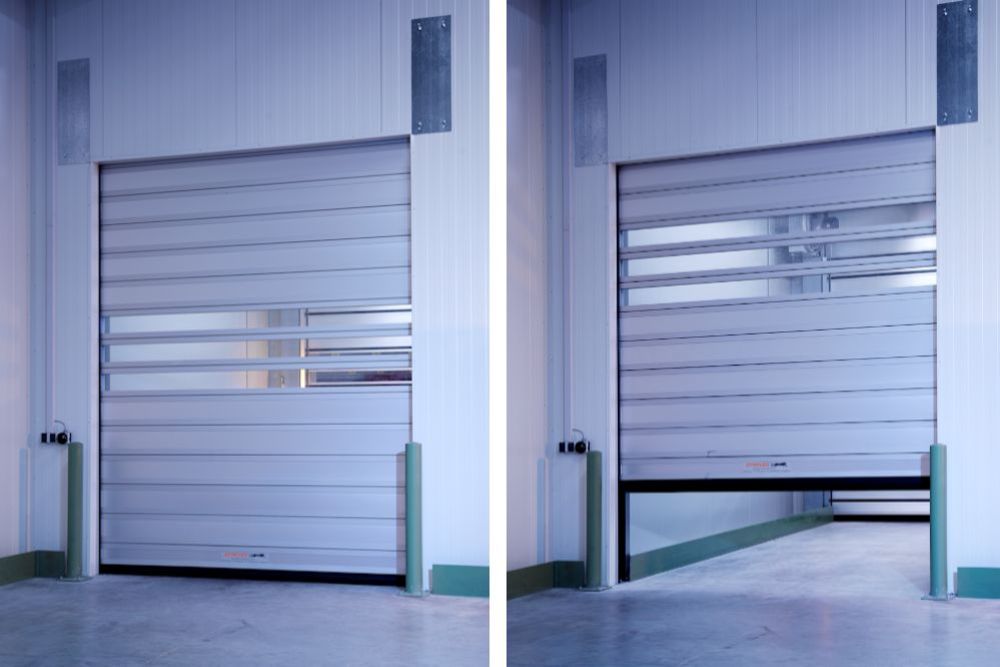

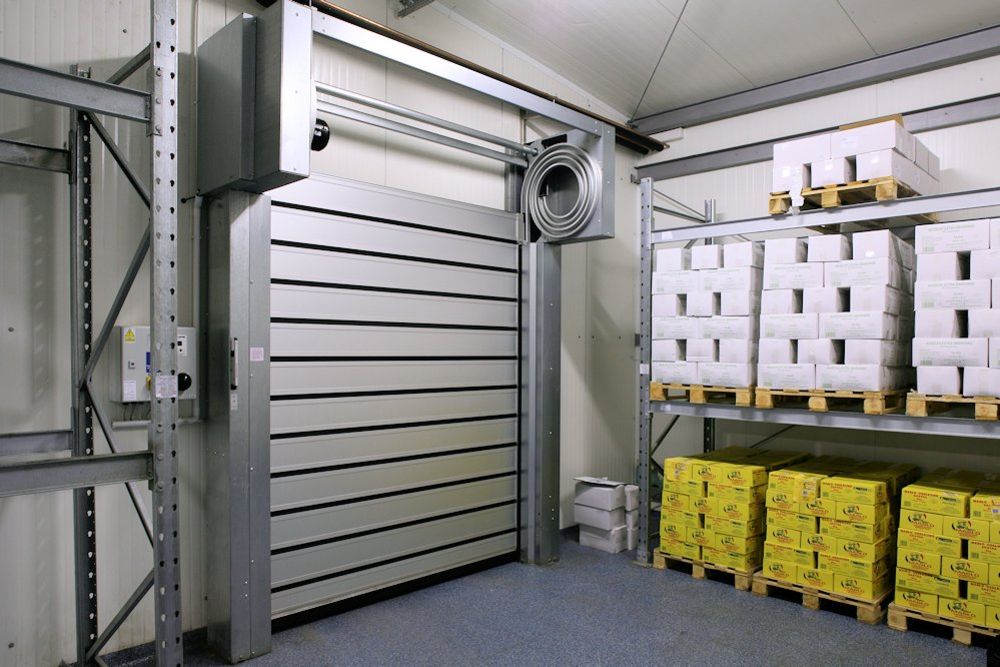

Doors in cooled rooms must be able to withstand very high loads. Top quality and perfect workmanship are a prerequisite for all components to withstand cold and humidity. EFA-SST® ISO-60 is the ideal closing door when a sophisticated insulation is required for highly frequented openings, e.g. in cold-storage rooms.
Insulates perfectly, saves energy
The EFA-SST® ISO-60 combines two EFAFLEX door technologies to one innovative solution: the multi-patented spiral as well as highly insulating laths. In addition, cost-intensive sealing prevents the exchange of air and temperature. These components make up an excellently insulated door.
Perfect heat insulation
Perfection in detail

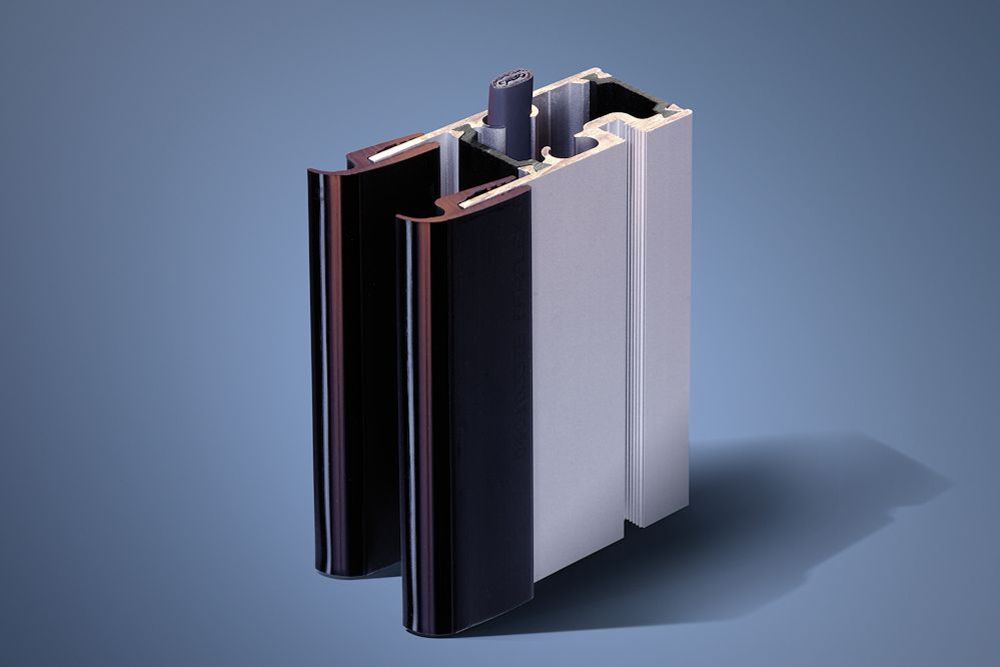

A better heat insulation then ever before is from now on guaranteed by the 60 mm thick EFA-THERM® insulation laths! The laths are thermally separated as a standard. Especially developed details provide excellent vertical and horizontal sealing of the EFA-SST® ISO-60. The vertical insulation towards the frame is carried out by thermally separated aluminium profiles with nearly wear-free sealings. The horizontal space between wall and door leaf is closed by an active lintel sealing made of aluminium. For being used even in conditions of high temperature differences and/or high humidity, both sealings can optionally be equipped with heating tapes.
Food cooling
Constant temperatures

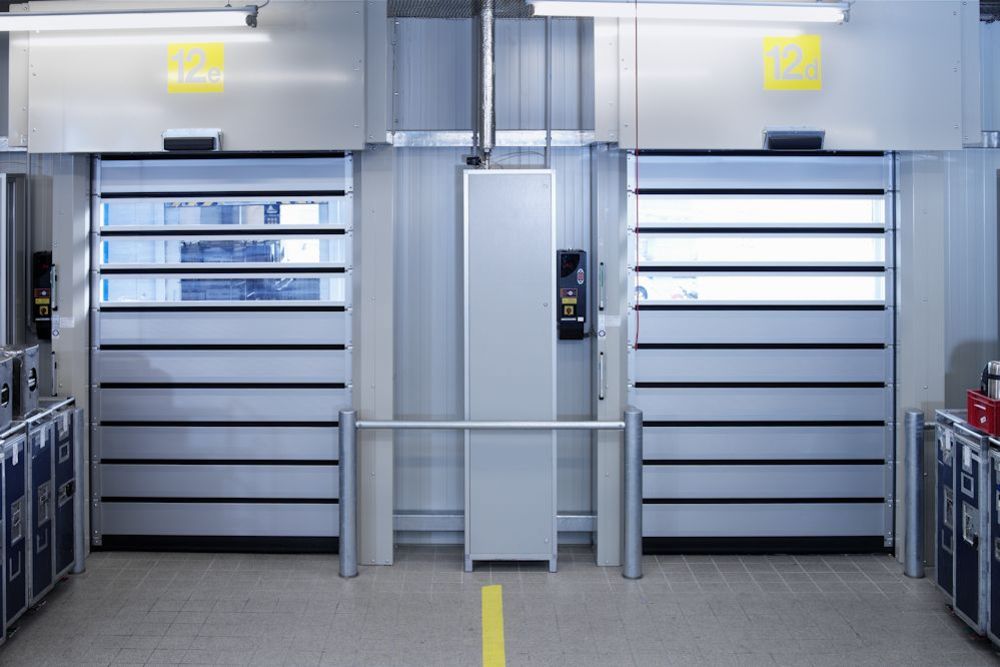

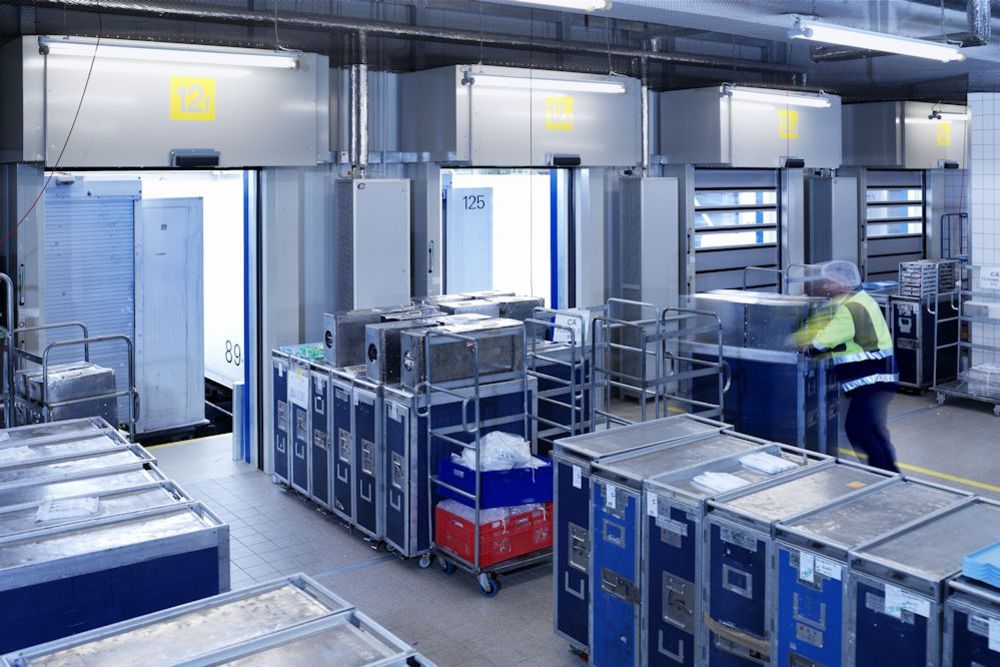

The EFA-SST® ISO-60 is used in situations where constantly low temperatures have to be maintained, e.g. in the field of airline catering. In order to ensure the constantly high quality of served meals, constant and exact cooling is necessary. Especially doors are a very sensitive point between two temperature zones.
Perfect sealing
If closed, the double-walled and thermally separated insulation lath of the EFA-SST® ISO-60 with a double rubber sealing provides the corresponding insulation. Due to the high fluctuation of goods, doors used in the field of airline catering must perform many operating cycles. Here, the high speeds of the EFAFLEX high-speed doors prevent an excessive temperature exchange.
Safety devices
With absolute safety
EFAFLEX high-speed doors of course also guarantee highest standard with regard to safety. As the leading manufacturer of high-speed doors, EFAFLEX is aware of its responsibility! Therefore, we aim at doing pioneering work also with regard to safety. Our systems offer you considerably more safety – for persons as well as for the material loaded and the door itself.
Unique systems - for more safety
Not only the doors themselves satisfy the highest demands at EFAFLEX. The appertaining safety systems also offer unique advantages. EFA-SCAN®, the latest EFAFLEX patent, is the first laser scanner worldwide for being used in a door and is activator and safety system in one.
