Πληροφορίες
Technical Specifications

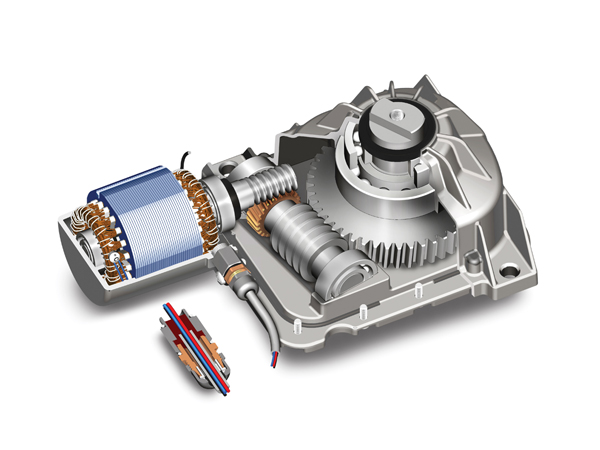

Sectional Draw

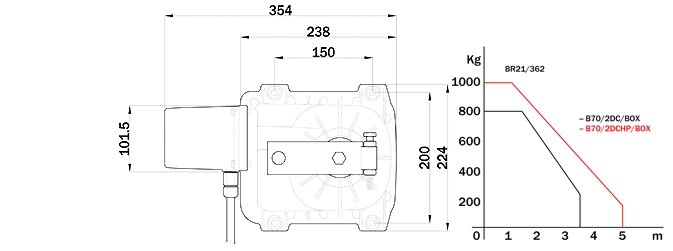

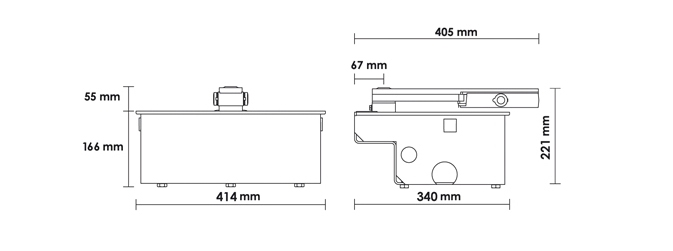

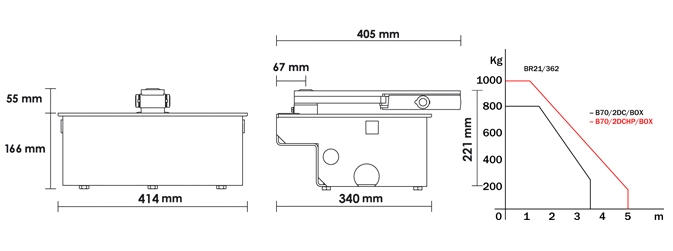

Product dimensions & preparing for installation

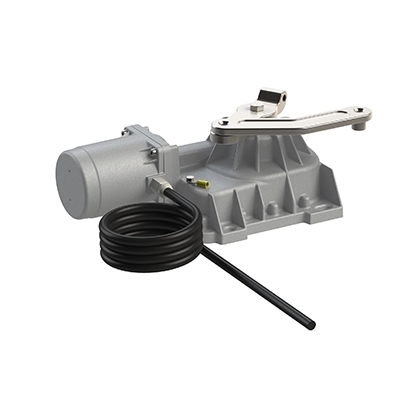

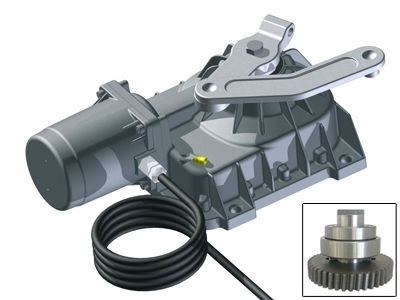

BR21/362 Electromechanical underground motor, BRUSHLESS, low voltage, super intensive use, with native encoder onboard, irreversible, ideal for swing gates with leaf up to 3,5 mt. Double bearings version with 10 mt cable.
| Mechanical adjustable stop when closing, adjustable when opening in the foundation box". |
| Number items per pallet: | 50 |
| Power rating: | 200 W |
| Max thrust: | 300 N |
| Frequency of use: | Intensive use |
| Operating temperature: | -20+55°C |
| Protection level: | IP67 |
| Opening time at 90°: | 19-29 s |
| Maximum dimension product in mm: | L414 x W221 x H405 |
| Operating cycles per day(opening/closing-24hours no stop) | 1300 cycles |
