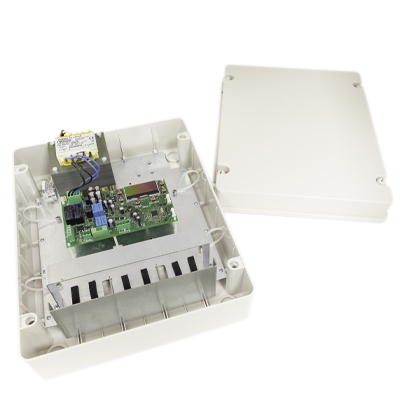

B71/PBX24/BOX (Κατόπιν Παραγγελίας)
Hybrid inverter, “Network Assisted” version, for powering the automation. Also provides a battery-charger function thanks to the connection to the solar panels or mains supply for powering the 24V DC brushless digital controllers with a mains voltage of 230V AC.
| Power line supply: | 230V AC |
| Operating temperature: | -20°C +55°C |
| Protection level: | IP66 |
| Compatible digital controllers: | Brushless 24V DC: B70/1DC, B70/2DC, B70/2ML, B70/2B |
| backup batteries (not included): | 2 x 12V DC - USE ONLY AGM BATTERIES TYPE - minimum 4.5Ah |
| Number of photovoltaic panels that can be connected: | 2 |
| Minimum power (photovoltaic panel): | 20W |
| Maximum voltage from a photovoltaic panel (not charged): | 22V DC |
| Minimum voltage from a photovoltaic panel (charged): | 18V DC |
| Maximum dimension product in mm (L x W x H): | 310 x 120 x 390 |
| Product weight packed (Kg): | 6,4 |
| Number items per pallet: | 30 |
