Technical Specifications

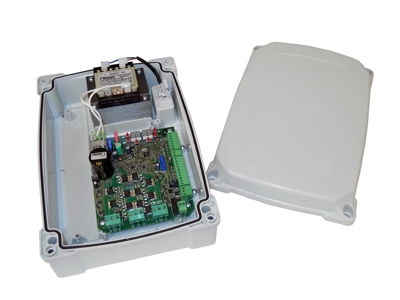

Digital control 24V ONLY for 2 overhead doors automations Brushless (Cod. BR41/830 or BR41/830/Q), with plastic box.
| Power line supply: | 230V AC - 50 Hz |
| Operating temperature: | -10+55 C° |
| Protection level: | IP54 |
| N. motors activated: | 2 Brushless Motor BR41/830 or BR41/830/Q |
| Max power per motor: | 200W |
| Max courtesy light charge: | 2x5 W (24V DC) |
| Max power gate open light: | 3W (24V DC) |
| Max voltage accessories output: | 10W (24V DC) |
| Eletrical-Lock max power: | 15W (12Vdc) |
| Flash light voltage: | 24V DC |
| Max flashing light charge: | 25W |
| Battery: | Optional |
| Maximum dimension product in mm (L x W x H): | 330 x 230 x 115 |
| Product weight packed (Kg): | 4,4 |
| Number items per pallet: | 50 |
